        H type terminal | Products
        This current location is:Home > Products > Stationary terminals > H type terminal

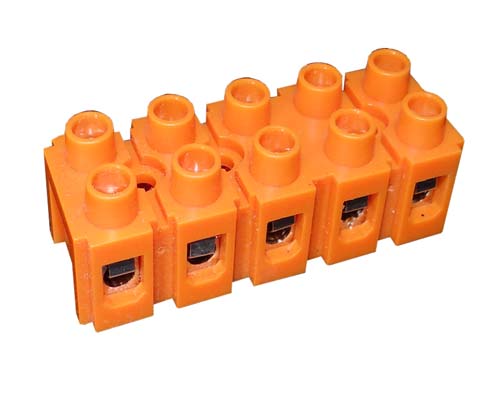

        H2519-5P
        click: 6470
        StandardUL/CERated voltage600VRated current36ALead wire diameter6mm2Size: Length/Width/Height55/20/20mmRated impact voltage/Pollution level8kV/3Mechanical properties ofScrew gauge/TwistM3/0.6-0.8NmPlug gaugeA3MaterialHousingPA66 UL94V-0TerminalBrass,

        Detailed description

        • technical
        • Dimension
        • Ordering
        • Related
        • pdf

        Standard

        UL/CE

        Rated voltage

        600V

        Rated current

        36A

        Lead wire diameter

        6mm2

        Size: Length/Width/Height

        55/20/20mm

        Rated impact voltage/Pollution level

        8kV/3



        Mechanical properties of

        Screw gauge/Twist

        M3/0.6-0.8Nm

        Plug gauge

        A3





        Material

        Housing

        PA66   UL94V-0

        Terminal

        Brass, Nickel plating

        Screws

        Steel, M3 Nickel plating


        No file download
