ST back to pull the spring terminals | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> ST back to pull the spring terminals

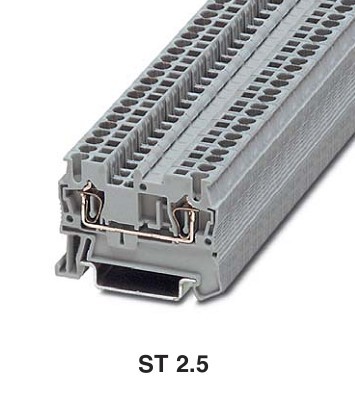

ST2.5
click: 6625
The rated voltage800VRated current31AWire diameter0.2-4mm2Thickness/length/end plate thickness5.2/48.5/2.2mmHighly(NS35∶7.5 / NS35∶15 / NS32)36.5/44Rated impact voltage/Pollution level8kV/3Insulation material/flame retardant gradePA/V-0
Detailed description
- technical
- Dimension
- Ordering
- Related
|
The rated voltage |
800V |
|
Rated current |
31A |
|
Wire diameter |
0.2-4mm2 |
|
Thickness/length/end plate thickness |
5.2/48.5/2.2mm |
|
Highly(NS35∶7.5 / NS35∶15 / NS32) |
36.5/44 |
|
Rated impact voltage/Pollution level |
8kV/3 |
|
Insulation material/flame retardant grade |
PA/V-0 |
